Product Details

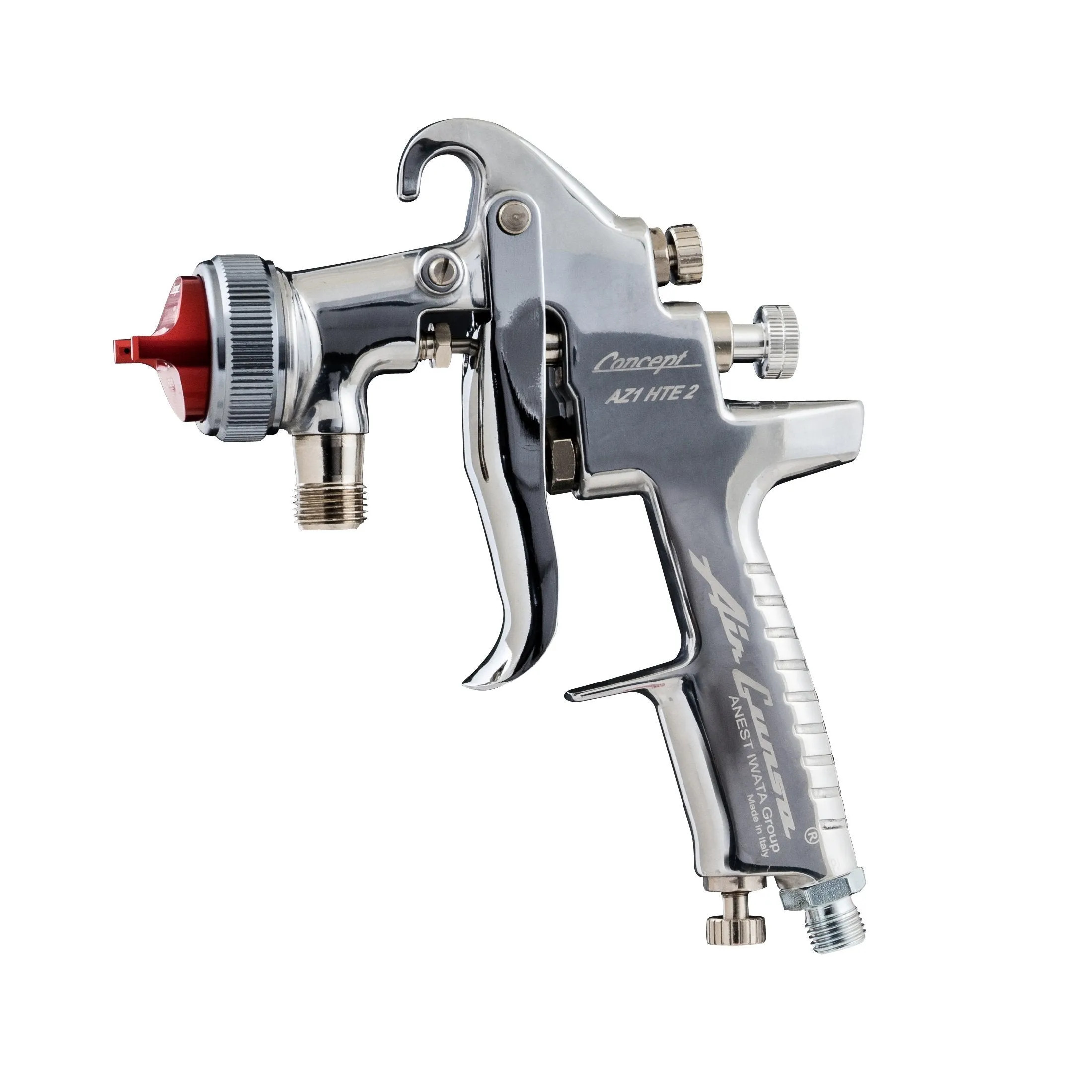

＋ANEST IWATA Concept AZ1 HTE Pressure Feed Spray Paint Gun 2.0mm
AZ1 Concept HTE Spray Gun Only
The AZ1 High Transfer range of pressure spray guns feature a newly designed range of air caps. This new technology allows even less experienced sprayers to obtain high quality and consistent finishing. These air caps develop a long and tulip shaped spray pattern with an extra fine particle distribution and very little overspray.
Specifications
| Part No. | Fluid Nozzle Size [mm] | Air Pressure @ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] |
|---|---|---|---|---|---|
| AZ1HTE2P10 | 1.0 | 2.5 | 416 | 400 | 390 |
| AZ1HTE2P13 | 1.3 | 2.5 | 416 | 400 | 400 |
| AZ1HTE2P15 | 1.5 | 2.5 | 416 | 400 | 410 |
| AZ1HTE2P18 | 1.8 | 2.5 | 416 | 400 | 410 |
| AZ1HTE2P20 | 2.0 | 2.5 | 416 | 400 | 410 |
| AZ1HTE2P25 | 2.5 | 2.5 | 333 | 400 | 320 |
| AZ1HTE2P30 | 3.0 | 2.5 | 333 | 400 | 320 |
| AZ1HTE2P35 | 3.5 | 2.5 | 333 | 400 | 330 |
